01 / Input
Machine overview
The main station coordinates water management, nutrient dosing, electrical systems, and industrial PLC control.
- Water management
- Nutrient dosing
- Industrial PLC control
View real installation photos
The installed main station
02 / Delivery
Root-Targeted Ultramistsprinkler heads behind the planting board deliver ultrafine processed nutrient mist around suspended roots without submerging them.
During root-targeted ultrafine mistingsprinkler heads behind the planting board deliver ultrafine processed nutrient mist around suspended roots without submerging them., sprinkler heads behind the planting board atomize processed, crop-specific nutrient solution under medium pressure. The ultrafine processed nutrient mist reaches suspended roots inside the growing structure.

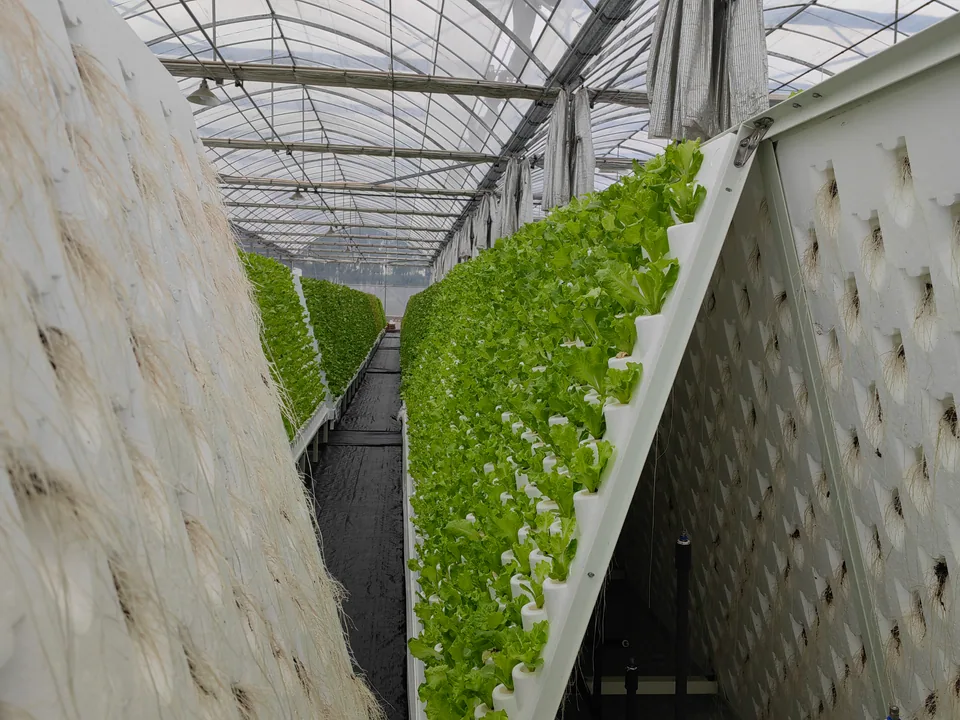

Lift the planting board to see suspended roots hanging from its underside. The sprinkler heads behind it apply ultrafine processed nutrient mist to the surrounding air—not into a water bath.
View real installation photos
Inside the root chamber
03 / Return
Nutrient circulation
After root-targeted ultrafine mistingsprinkler heads behind the planting board deliver ultrafine processed nutrient mist around suspended roots without submerging them., collected droplets pass through the recovery and recirculation loop. The root chamber remains an air space, not a nutrient bath.
- Prepare
- Deliver
- Return
- Circulate
View real installation photos
Processing and control equipment
